Why Do These Engines Leak Oil?
Modern Audi and Volkswagen Group Hot-V engines-including the popular 4.0 TFSI V8 found in various Audi, Porsche, Bentley and Lamborghini models equipped with the Volkswagen Group 4.0-litre twin-turbo V8.
This design improves packaging and turbocharger response but also exposes components within the valley to significant heat over many years of operation.
One of the most common failures we encounter is the engine oil cooler and its associated seals.
Symptoms of a Failing Hot-V Oil Cooler
Owners may notice:
- Oil leaks beneath the vehicle
- Burning oil smells after driving
- Oil collecting inside the engine valley
- Smoke from the engine bay
- Low engine oil warnings
- Oil residue around the turbocharger area
Because the oil cooler sits beneath the turbochargers and intake system, diagnosing the source of the leak often requires significant disassembly.
Why Is This Repair Labour Intensive?
Unlike conventional engines, the oil cooler cannot simply be accessed from underneath the vehicle.
The intake system, turbocharger assembly and numerous ancillary components must first be removed before technicians can access the oil cooler located deep within the engine’s “Hot-V”.
Once exposed, the leaking oil cooler and seals can be replaced before thoroughly cleaning the engine valley and carefully reassembling the engine.
Which Vehicles Are Affected?
The Volkswagen Group 4.0-litre Twin-Turbo Hot-V V8 (EA825) is shared across numerous Audi, Porsche, Bentley and Lamborghini performance models. While vehicle calibrations differ, they all utilise the same Hot-V engine architecture, meaning the internal oil cooler assembly can develop the same leak over time. Commonly affected models include:
- Audi RS6 (C8) - 4.0L Twin-Turbo V8 (EA825)
- Audi RS7 (C8) - 4.0L Twin-Turbo V8 (EA825)
- Audi RS Q8 - 4.0L Twin-Turbo V8 (EA825)
- Audi SQ7 (4M) - 4.0L Twin-Turbo V8 (EA825)
- Audi SQ8 - 4.0L Twin-Turbo V8 (EA825)
- Audi S8 (D5) - 4.0L Twin-Turbo V8 (EA825)
- Porsche Cayenne Turbo - 4.0L Twin-Turbo V8
- Porsche Panamera Turbo - 4.0L Twin-Turbo V8
- Bentley Bentayga V8 - 4.0L Twin-Turbo V8
- Bentley Continental GT V8 - 4.0L Twin-Turbo V8
- Bentley Flying Spur V8 - 4.0L Twin-Turbo V8
- Lamborghini Urus - 4.0L Twin-Turbo V8
If your Audi, Porsche, Bentley or Lamborghini is equipped with the Volkswagen Group 4.0-litre Twin-Turbo Hot-V V8 and you’ve noticed oil loss, a burning oil smell, smoke from the engine bay, or oil collecting inside the engine valley, it’s worth having the oil cooler assembly inspected before the leak becomes more severe.
Audi Q7 Hot-V Oil Cooler Replacement

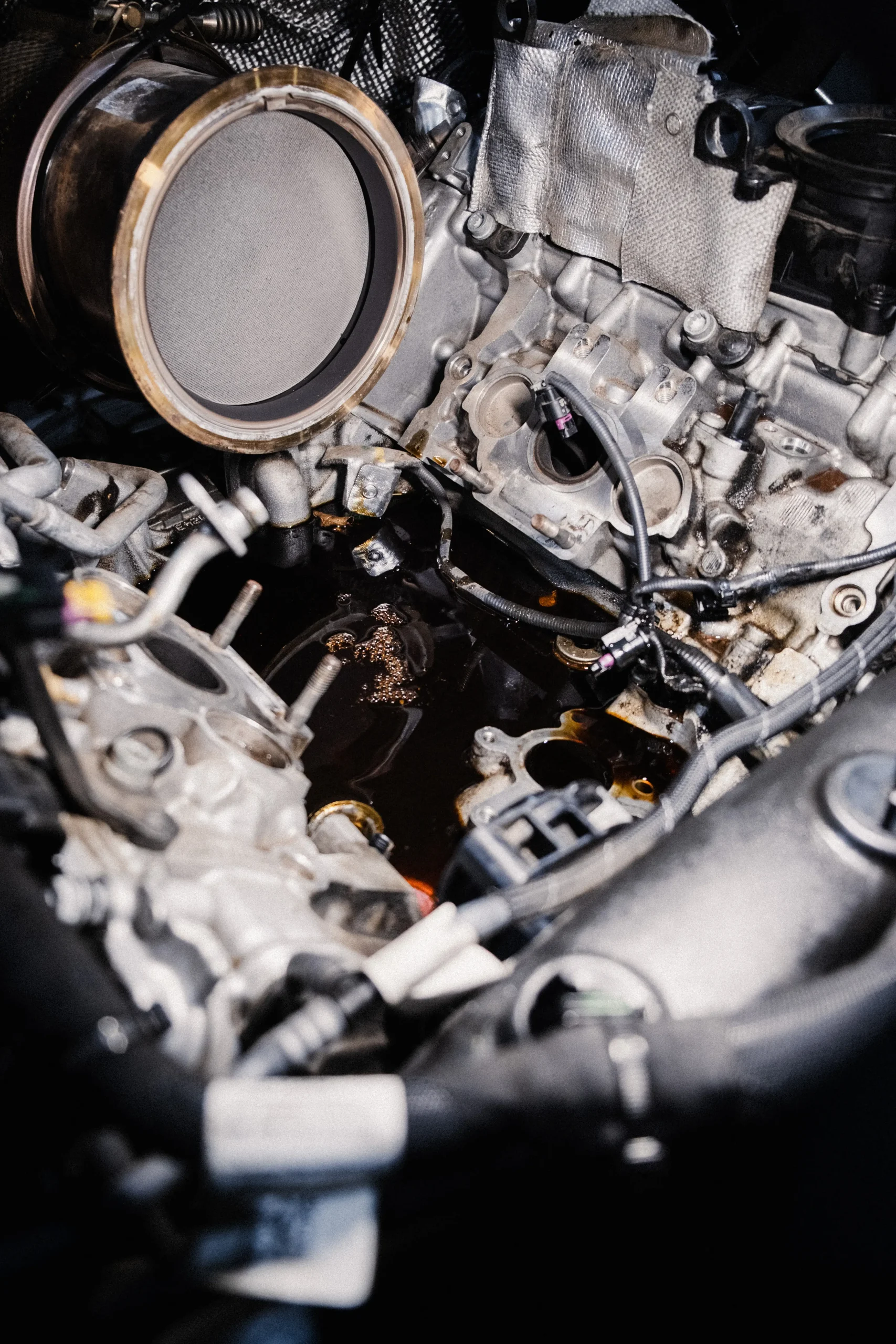

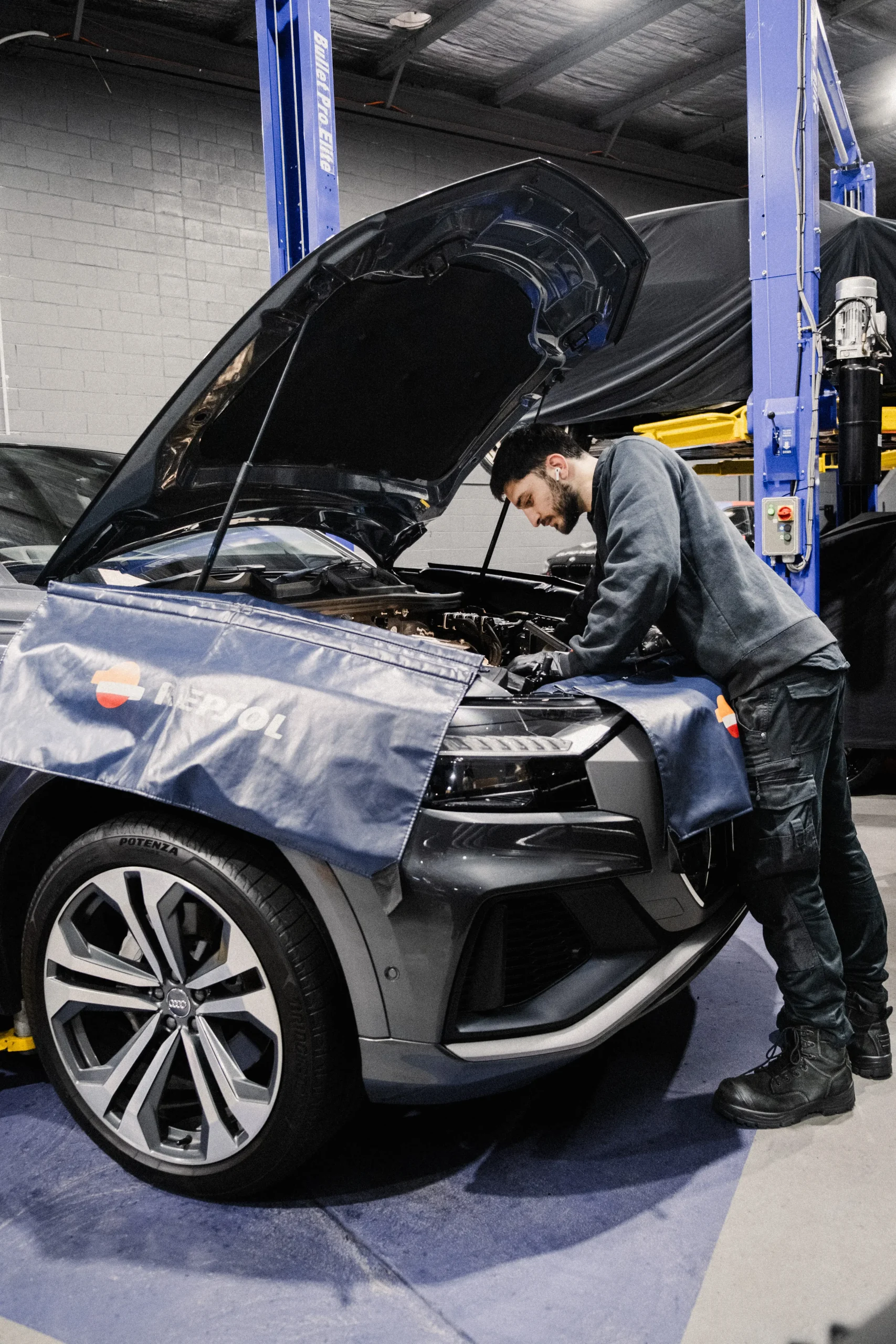

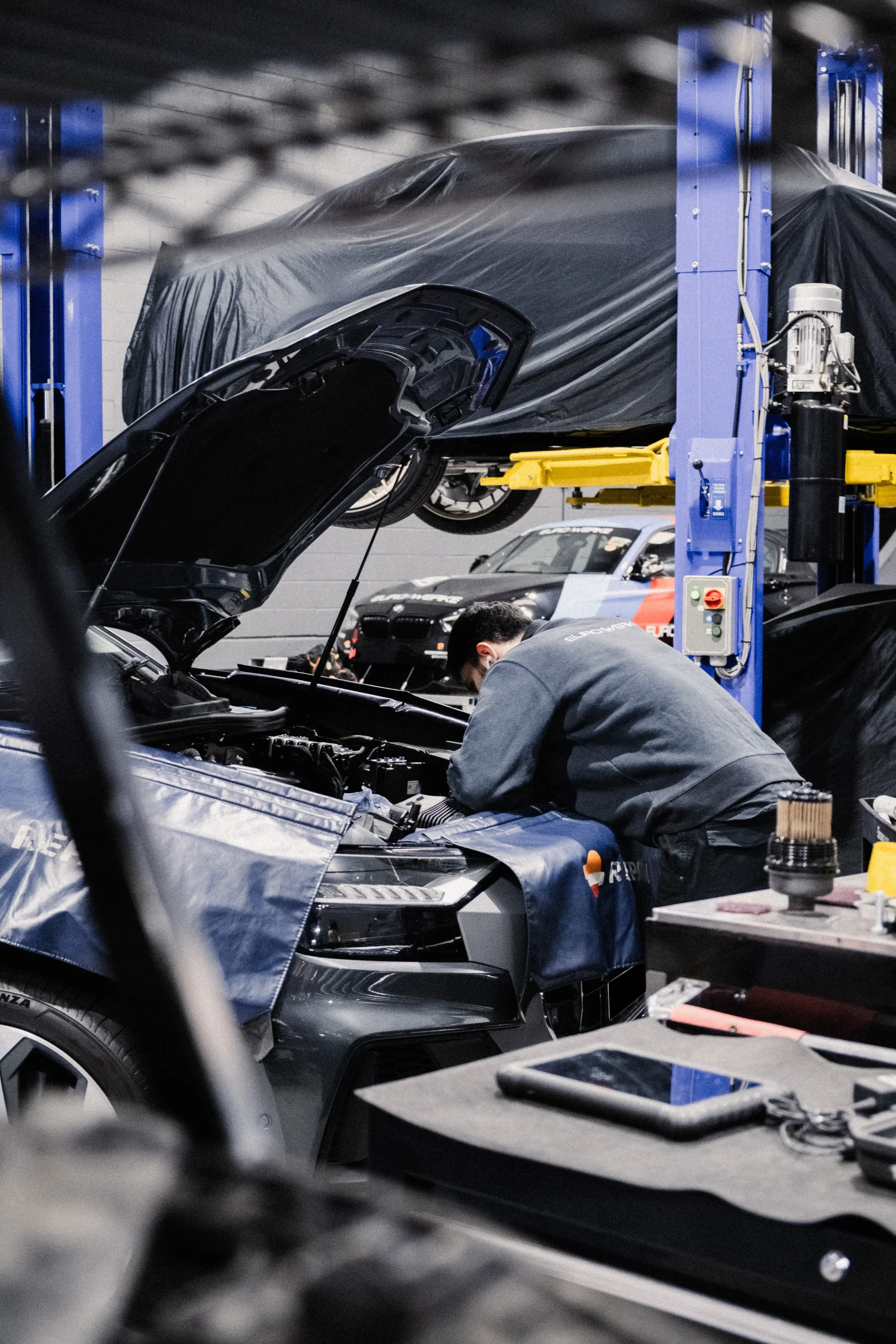

This Audi Q7 arrived at EuroWerke with a suspected engine oil leak.
After diagnosis, the source was traced to the Hot-V oil cooler assembly.

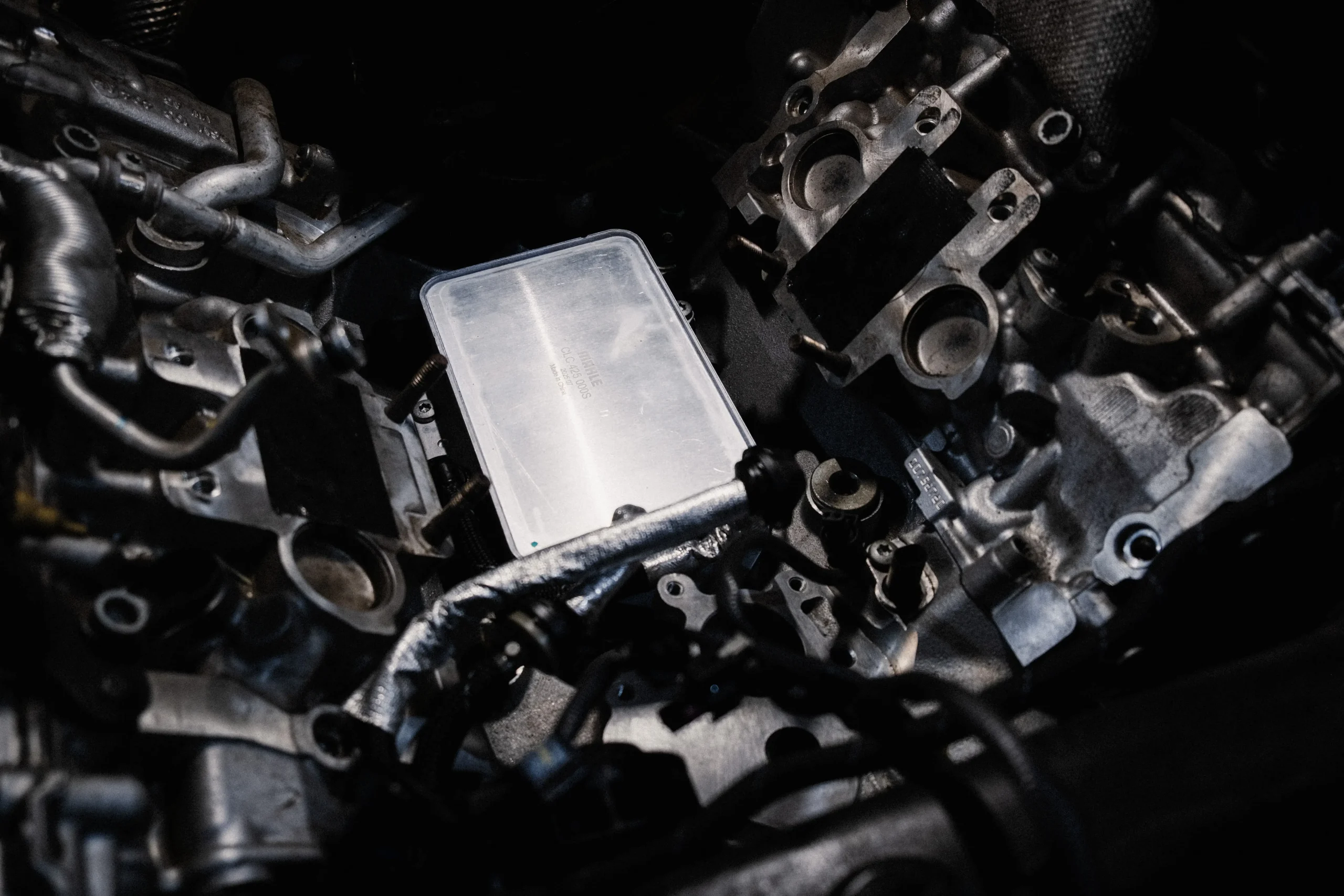

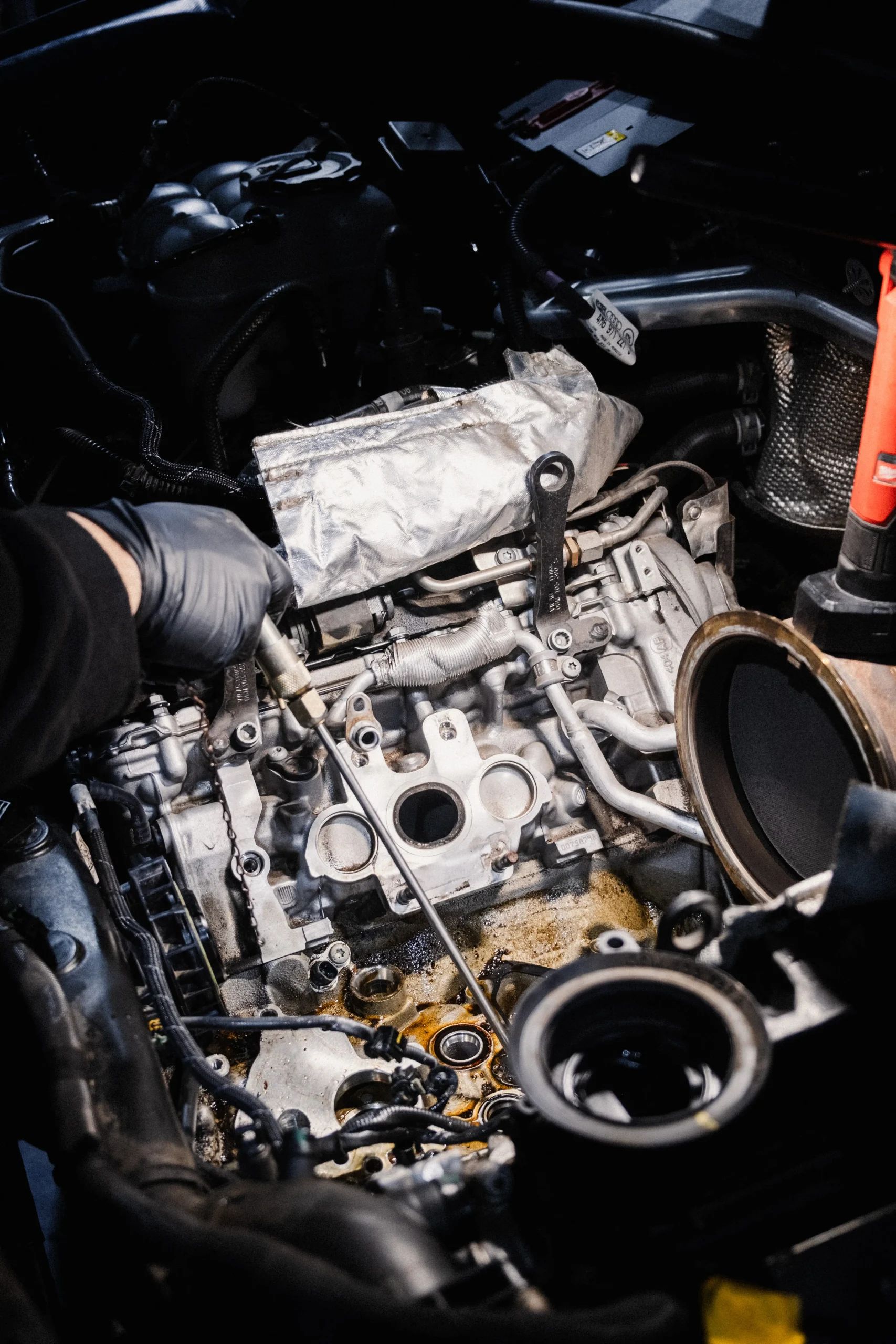

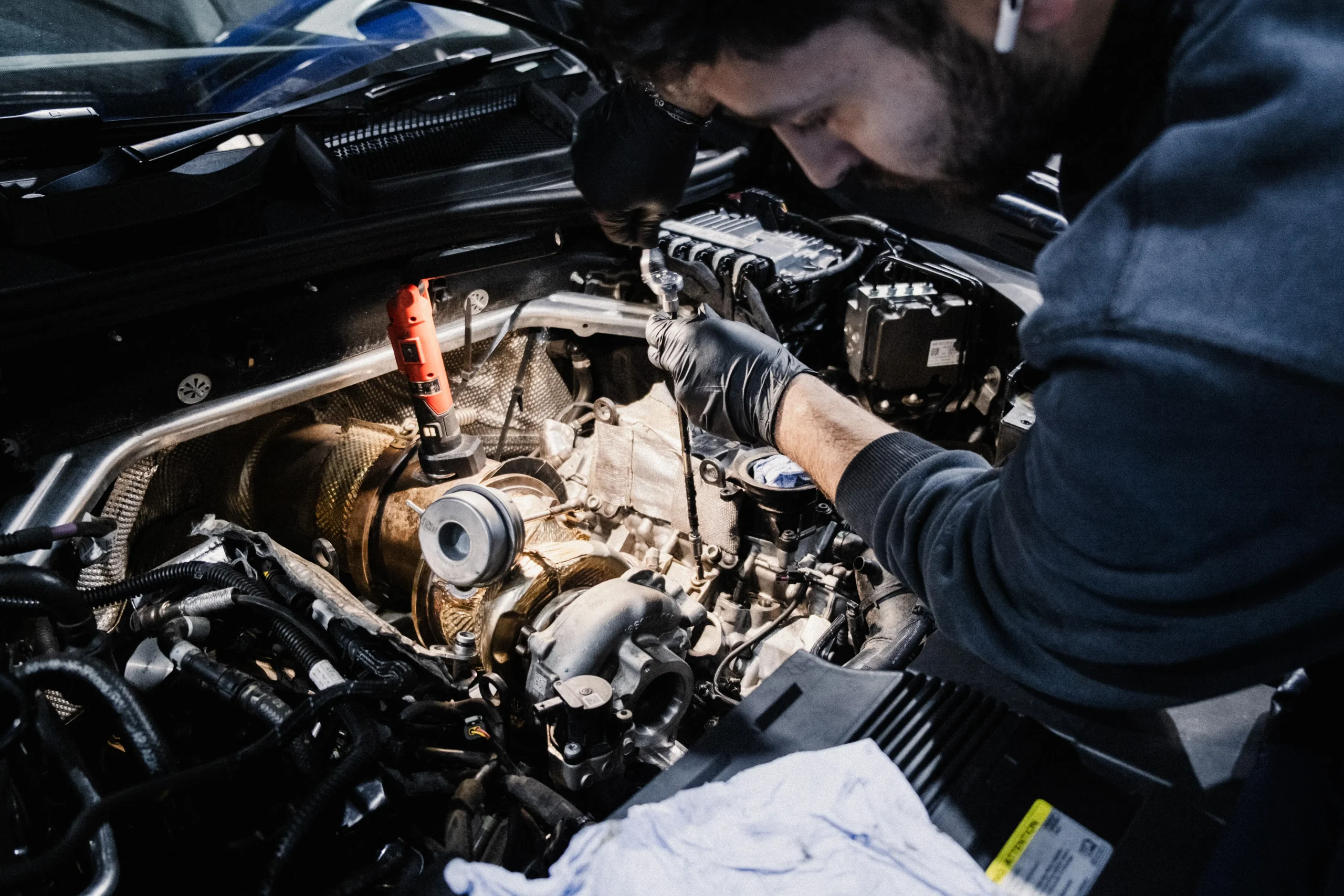

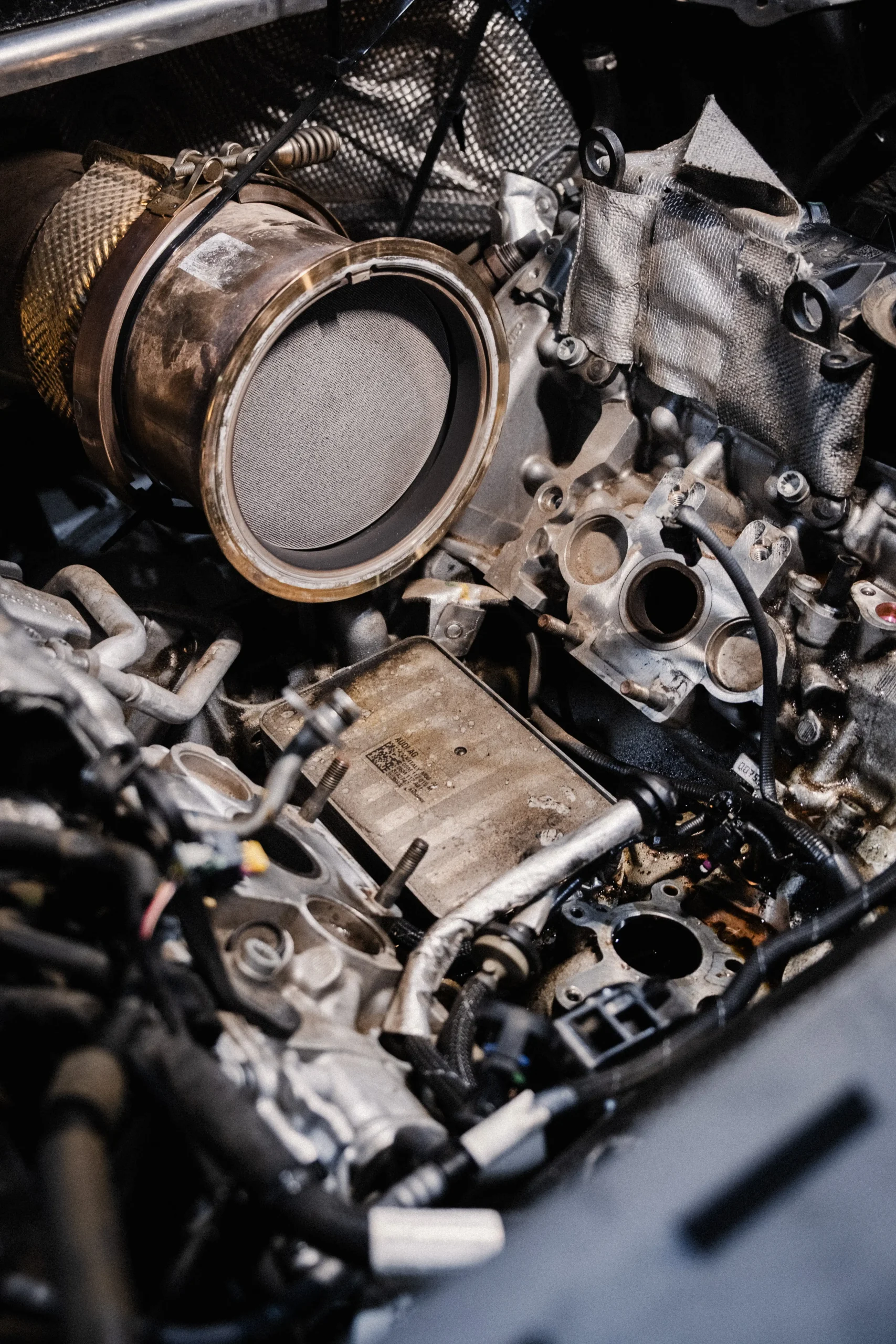

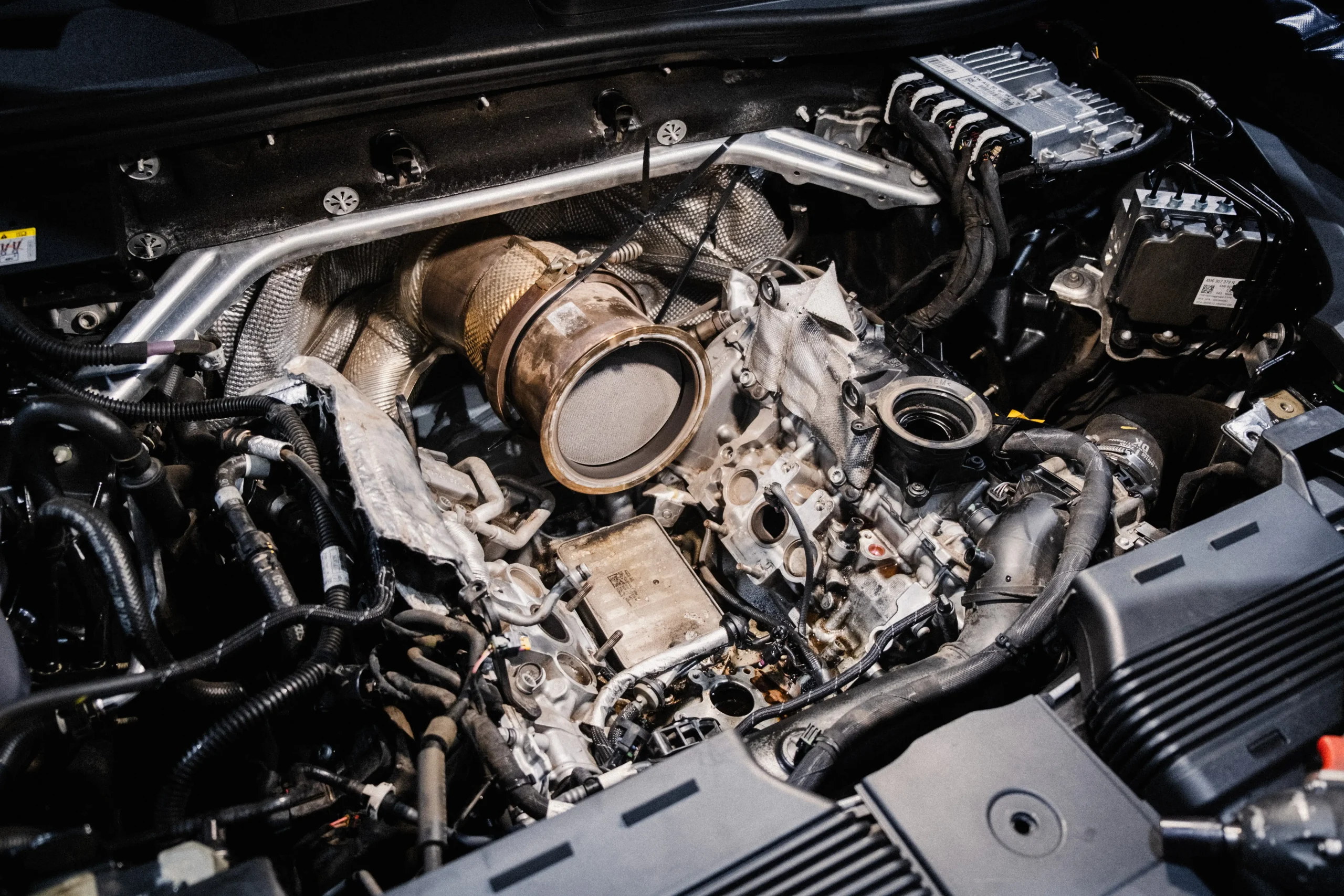

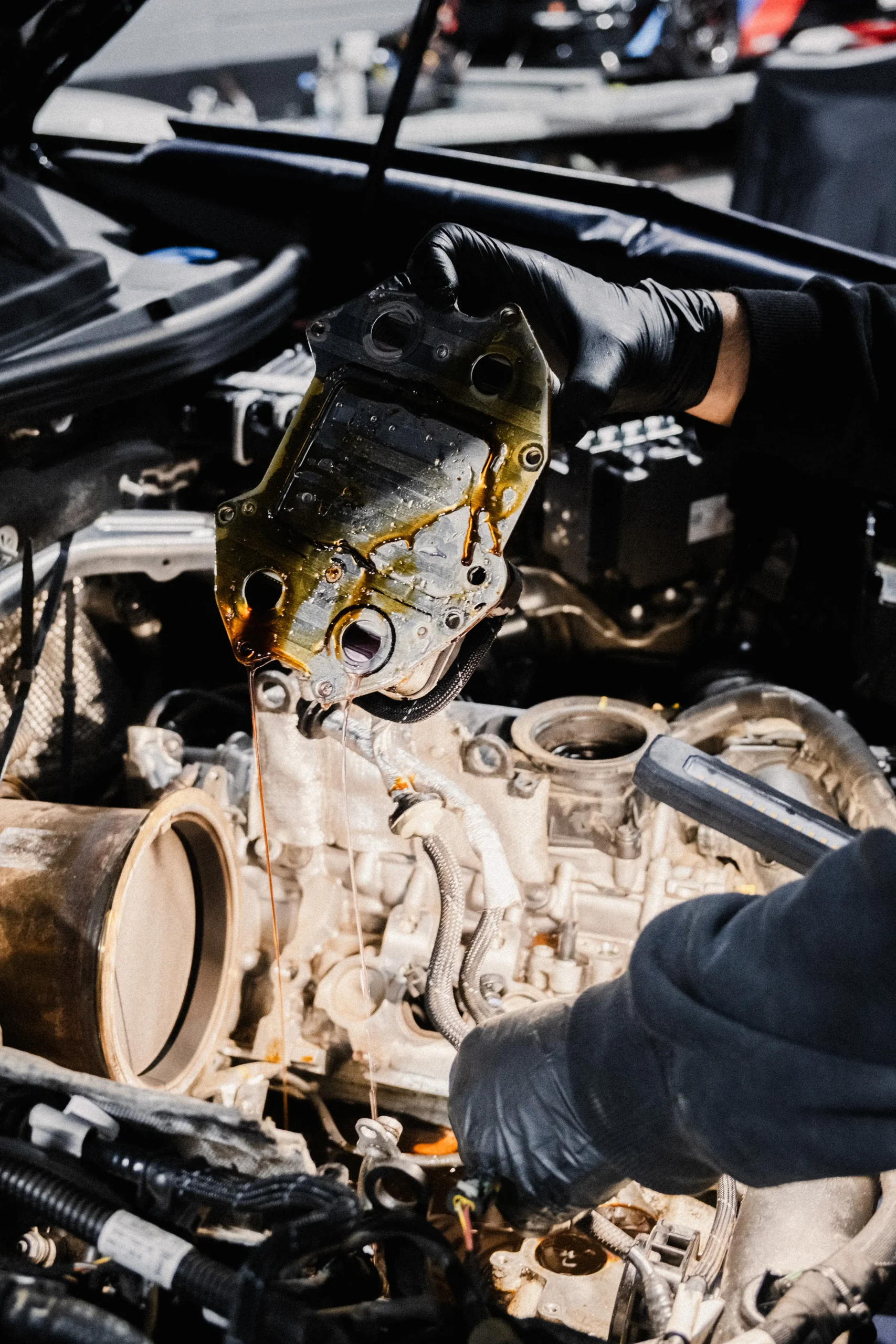

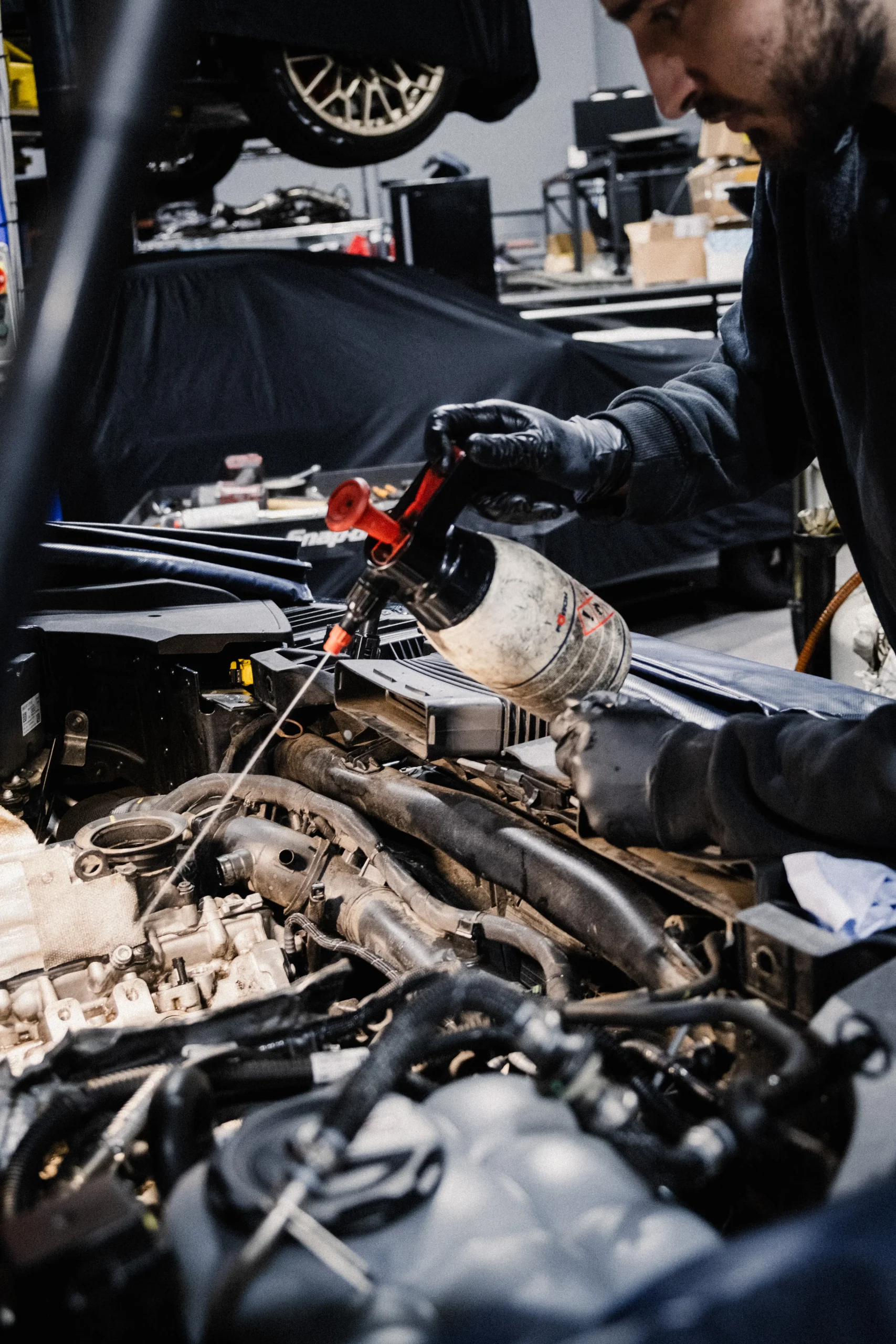

With the turbocharger assembly removed, our technicians replaced the failed oil cooler before thoroughly cleaning the engine valley and reassembling the engine using genuine-quality replacement components.
The result is an engine free from leaks and ready for many more kilometres of reliable operation.
Think Your Audi Has a Hot-V Oil Leak?
If you’ve noticed oil loss, burning smells or oil around the top of your engine, don’t ignore it.
Early diagnosis can prevent oil contamination throughout the engine valley while reducing the likelihood of further damage to surrounding components.
Our experienced technicians regularly diagnose and repair Hot-V oil cooler failures across a wide range of Audi and Volkswagen Group performance vehicles.
If you own an Audi RS model and suspect a Hot-V oil cooler leak, our team specialises in Audi servicing, diagnostics and repairs using genuine diagnostic equipment and years of experience with EA825-powered vehicles.
Frequently Asked Questions
What is a Hot-V engine?
A Hot-V engine places the turbochargers inside the valley of the V-shaped engine rather than outside the cylinder banks. This improves turbo response and packaging but increases temperatures around components located within the valley.
Which vehicles commonly experience Hot-V oil cooler leaks?
Various Audi and Volkswagen Group vehicles fitted with Hot-V engines, including certain Audi S and RS models, Q7/SQ7, Porsche, Bentley and Lamborghini applications, can experience oil cooler seal failures as they age.
What are the symptoms of a leaking oil cooler?
Common symptoms include burning oil smells, oil pooling within the engine valley, visible oil leaks, smoke from the engine bay and low oil warnings.
Can I keep driving?
Small leaks may initially seem harmless, but oil can continue accumulating inside the engine valley and eventually contaminate surrounding components or create smoke and odours. Prompt diagnosis is recommended.
How is the repair completed?
The intake and turbocharger assembly are removed to access the oil cooler. The faulty cooler and seals are replaced before the engine valley is cleaned and the engine carefully reassembled.
Suspect an Oil Cooler Leak?
If your Audi, Porsche, Bentley or Lamborghini is showing signs of an EA825 Hot-V oil cooler leak, don’t ignore it.
Early diagnosis can often prevent contaminated engine bays, damaged ancillary components and significantly larger repair bills.
At EuroWerke, we’ve repaired numerous Volkswagen Group Hot-V engines and understand exactly what’s involved-from diagnosis through to complete replacement and reassembly.
